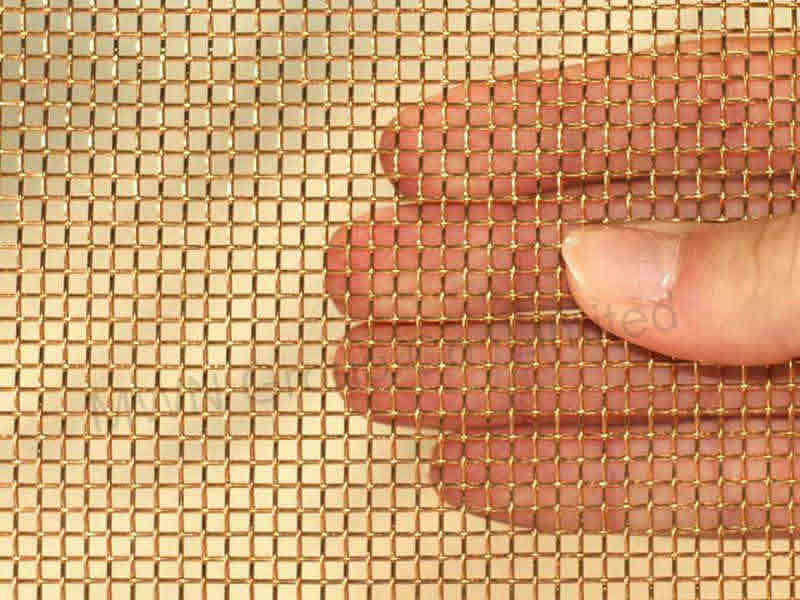

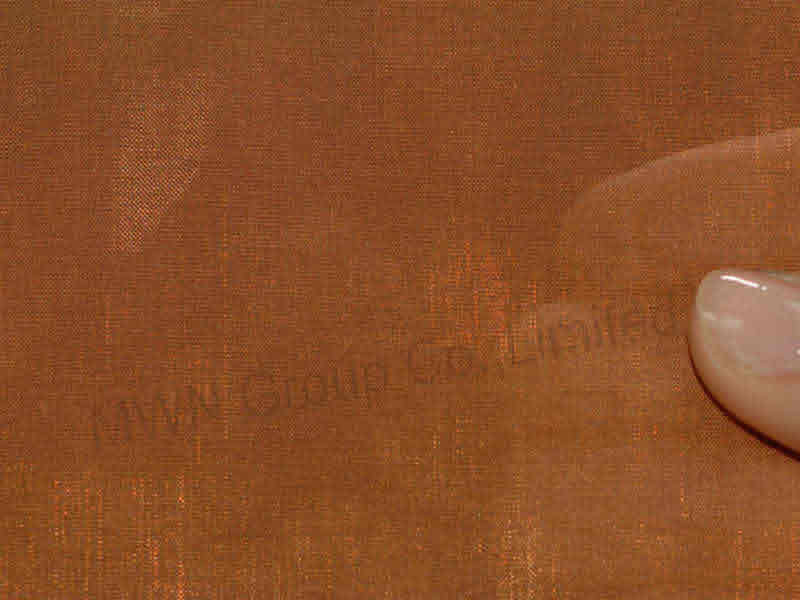

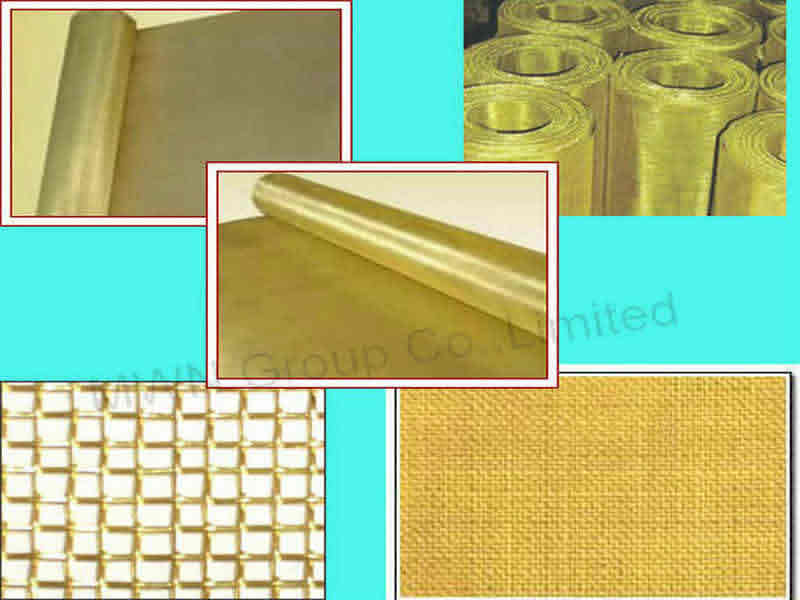

Brass,Copper Wire Mesh


Material: Brass wire, Copper wire or Phosphor bronze wire.
Application: Seperation and sifting kinds pellet ,grain,porcelain earth and glass, chinaware printing, filter liquid, etc.
Width: 0.914M, 1M, 1.5M
Length/roll: 30M
Weaving methods: Plain weave, twill weave or Dutch weave.

Mesh Wire Dia. Opening(mm)
  SWG mm inch
6mesh 22 0.711 0.028 3.522
8mesh 23 0.610 0.024 2.565
10mesh 25 0.508 0.020 2.032
12mesh 26 0.457 0.018 1.660
14mesh 27 0.417 0.016 1.397
16mesh 29 0.345 0.014 1.243
18mesh 30 0.315 0.012 1.096
20mesh 30 0.315 0.0124 0.955
22mesh 30 0.315 0.0124 0.840
24mesh 30 0.315 0.0124 0.743
26mesh 31 0.295 0.0116 0.682
28mesh 31 0.295 0.0116 0.612
30mesh 32 0.247 0.011 0.573
32mesh 33 0.254 0.010 0.540
34mesh 34 0.234 0.0092 0.513
36mesh 34 0.234 0.0092 0.472
38mesh 35 0.213 0.0084 0.455
40mesh 36 0.193 0.0076 0.442
42mesh 36 0.193 0.0076 0.412
44mesh 37 0.173 0.0068 0.404
46mesh 37 0.173 0.0068 0.397
48mesh 37 0.173 0.0068 0.356
50mesh 37 0.173 0.0068 0.335
60meshx50mesh 36 0.193 0.0076 -
60meshx50mesh 37 0.173 0.0068 -
60mesh 37 0.173 0.0068 0.250
70mesh 39 0.132 0.0052 0.231
80mesh 40 0.122 0.0048 0.196
90mesh 41 0.112 0.0044 0.170
100mesh 42 0.012 0.004 0.152
120meshx108mesh 43 0.091 0.0036 -
120mesh 44 0.081 0.0032 0.131
140mesh 46 0.061 0.0024 0.120
